Low Voltage Single Circult Electric Steel Power Pole with Hot Dip Galvanization

Brand Name : JSBS
Model Number : EP24
Certification : ISO9001:2008
Place of Origin : CHINA
MOQ : 1Ton
Price : USD 888 TON
Supply Ability : 2000Ton per month
Delivery Time : 15 working days after received the downpayment
Packaging Details : Use sack package the poles or straw or wood or steel strap, etc
Material : Steel
Surface Trement : Hot dip galvanized.
Shape : Polygonal / Round
Tolerance : ±2%
Min Yield Stress : 345Mpa
Circuits : Singe
Zinc Coating : Min 86 Microns
Voltage : Low
Contact Now

Low Voltage Single Circult Electric Steel Power Pole in Hot Dip Galvanization


Specification


Products
  • Low Voltage Single Circult Electric Steel Power Pole in Hot Dip Galvanization
Type

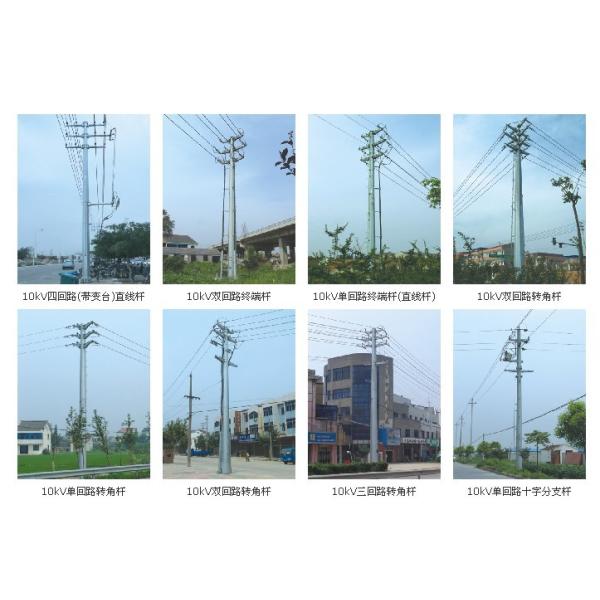

  • Suspension Pole , Tensile Pole , Strain Pole , Angle Pole , etc
Voltage Grade
  • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
Height
  • ≥ 7M .
Shape
  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc).
Material
  • Hot Roll Steel Sheet Q345, GR50 which equivalent to S355JR.
  • Min Yield Stree 345 Mpa
  • Tensile Strength 470 Mpa ~ 630 Mpa
Wall thickness
  • 3 ~ 20mm
Once Forming
  • 14m Once forming without joint
  • 40GP, 40HQ container Length is 12m , so the poles will be or more than 2 segments if longer than 12m.
Welding
  • Welding complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding
  • Ensure 100% complete penetration welds.
Joint
  • Joint with insert mode, flange mode.
Base plate
  • Base plate is square/round/Polygon with slotted holes for anchor bolts installation.
Galvanization
  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123.
Warrantly
  • More than 25 years, it is according to installing environment


Description:

The Low Voltage Single Circult Electric Steel Power Pole in Hot Dip Galvanization was design as customer's request. For transmission Line and distribution network use. We have the type with burial type or Base Plate use Anchor Bolts to Install. And exceed 12m the pole will be designed in 2 section and connection mode use slip joint or flange . The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

The hot dip galvanization technique could protect steel pole from corrosion for as long as 50 years
As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.



After - Sales Service

Our staff supply excellent after service, track and get the product information after our client got the products. We asked our client to fill a “Survey form for Satisfaction degree from Client”. We will solve the problems from client in 24 hours ,and we improve the quality and working method according to client’s good suggestions.


Raw material testStandard Accessories
- Top Cap
- Base plate
- Bottom strip
- Standard hole
- Climbing rung
- Anchor bolt
- Bituminous protection
- Painted marking
- Removable ladder
- Grounding Nuts & Bolts




Company Introduce:


Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World in average every day.


Production Process

  • Cutting
  • Bending
  • Welding (longitudinal )
  • Dimension verify
  • Flange welding
  • Hole drilling
  • Calibration
  • Deburr
  • Galvanization or powder coating or Bituminous painting
  • Recalibration
  • Packages


Material Test:


1. All of our material are purchased from famous mill factory to assure the quality.

2. A mill certificate issued by the mill factory with stamp and signature must be provided before
unload the material in our factory;


3. Before put into production, all the material must pass the chemical and physical analysis to
make sure that they have met the requested strength and component.



Terms and Conditions

1. Price Term: EXW, FOB, CFR or CIF.

Ø EXW: Poles Cost

Ø FOB : Pole Cost + Land Transportation + Fee on Port

Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight

Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.


2. MOQ: One 40FT Container.


3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.


4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.


5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.



Features:

1. We can supply the product based on client's required drawing ,but also can supply the design for any kinds of electric poles for customers to select.

2. Matercial : hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. Deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 14meters once forming( single section)

6. Thickness: from 2.5mm to 22mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. Easy install and maintenance.
