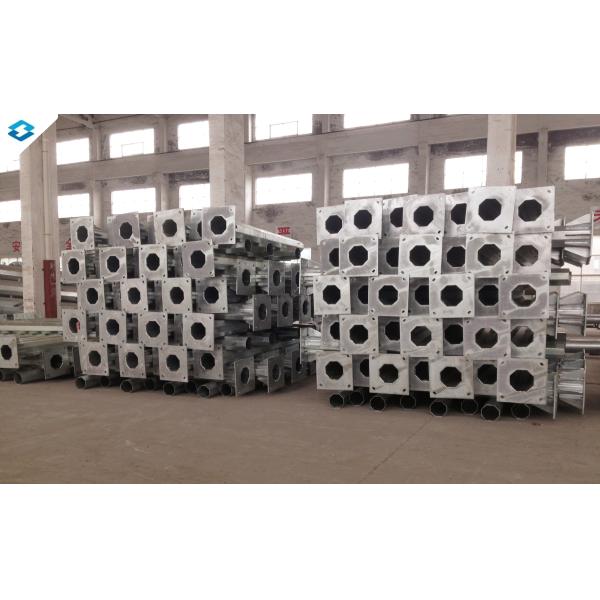

500mm Base Plate 7M 8M 9M 10M Octagonal Glavanized Electric Steel
Applied to the material of general-purpose steel GB/T1591-2008,
Q235, Q345, Q420, Q460 used in China.
|Material:||Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50|
|Yield strength of Material||Minimum yield strength>=235n/mm2 for Q235, S235 and SS400|
|Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50|
|Wall thickness||2~15mm or more|
|Pole's Shape Available|
Round, Polygonal, Taper Octagonal, Taper round, Round conical,
Taper Square, Square.
Advanced submerge-arc welding and CNC welidng equipment.
It has past flaw testing, internal and external double welding
makes the welding beautiful in shape.
|Manufacture Capacity||200 pcs /day|
|Wall thickness Tolerance|
+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm.
+- 0.5mm from 22mm to 30mm
|Painting color||( RAL ) Color card or customized|
|Surface treatment 1||Hot dip Galvanized|
|Surface treatment 2||Hot dip galvanizing with power coating|
|Temperature range||-35 °C~+45 °C|
|Wind Speed:||Against wind pressure of 120Km/h to 180Km/h, according to client’s
|Base plate mounted||Base plate is square, octagonal or round in shape with slotted
holes for anchor bolt and dimension as per customer’s requirement.|
|Ground mounted:||The length buried underground as per customer’s requirement.|
|Quality Control||According to ISO9001-2008 requirements.|
|Other||Less land occupation & easy maintenance.|
1. Are you a manufacturer or a trading company?
A:We are the direct factory manufacturer and the trading company.
2. Where is your company located?
A:Our factory is located in Industrial Zone No.37, Heqiao Town,
Yixing District, Wuxi City, Jiangsu Province, China(mainland).
3. What are your main products?
A:Our main products are electric poles, street lighting poles, high
mast pole, telecommunication tower poles, traffic signal poles,
wind generation poles, etc.
4. What's your nearest port?
A: Shanghai Port is our nearest port. It's only 30 minutes' driving
from our factory to Shanghai Port.
5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping. Or L/C.
6. What's your delivery time?
A: Normally within 15 working days. If our factory is busy and your
quantity is large, then around one month.
Quality Control Management
Our factory has passed the ISO 9001 quality management system. And
we have our own Lab to do the chemical and mechanical test. Also,
we test the raw material components and the strength when we
purchase the raw material. And if the material does not pass the
test then we’ll not use it to produce our wind turbine tower poles.
So customer can be rest assured that we always manufacture the good
quality poles. Meanwhile, our factory has the AMT ( Advanced
Manufacturing Technology ), all the purposes are to provide the
good poles to all over the world.
